Novus
AABR/OAE Newborn Screener

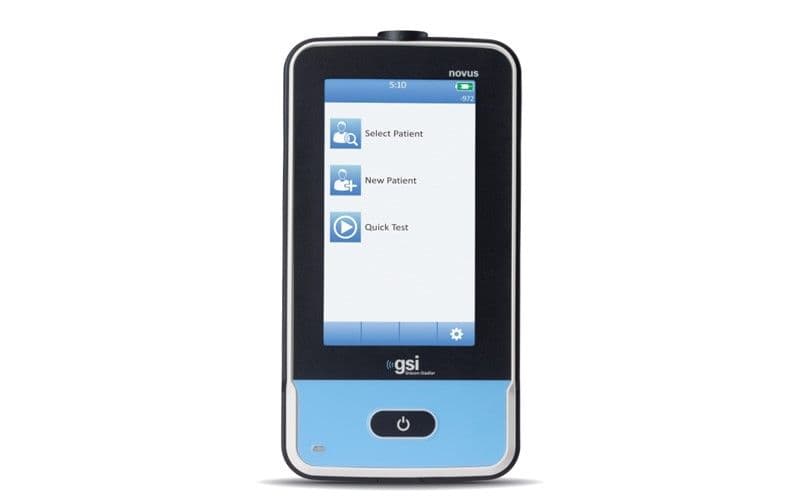

Newborn screening has never been easier. The GSI Novus™ is a sleek, handheld, comprehensive newborn screener that is easy to use and provides consistently accurate results. The Novus features a touch screen display, intuitive software in a compact hardware design, and a long-lasting battery. The Novus may be configured with any combination of auditory brainstem response (ABR) and otoacoustic emissions (TEOAE and DPOAE) which allows for seamless two stage infant hearing screening. The device is also equipped with HearSIM data management software, allowing clinicians to track patients, export information, and coordinate follow-up testing.
Request Quote
We will connect you with your local distributor, who will be able to provide you with the most accurate pricing information and answer any further questions that you may have.
Frequently Asked Questions
What is the Pass-Checker on the GSI Novus?
The Pass-Checker is an accessory that may be used to perform a quality check of a Novus that has the ABR test option to ensure the integrity of the electrode lead wires and transducers.
Which age groups can be tested with the Novus?
The auditory brainstem response measurement is intended for newborns and infants up to 6 months of age. The otoacoustic emissions (DPOAE and/or TEOAE) measurement is intended for use in patients of all ages.
How long does the Novus battery last?
The Novus battery is capable of conducting dozens of tests before recharging. A fully charged battery will last for approximately 50 ABR screens and 150 OAE screens, depending on test times. When the charge is low, it will operate from the wireless charging dock.
What is the Quick Test on the Novus?
The Quick Test allows the user to immediately perform a test without entry of patient demographics. These results are saved temporarily under the patient name of “Quick Test”. You may save a Quick Test session at a later time by entering the patient information.
How can I print the screening test results from the Novus?
Screening test results may be printed directly from the Novus using the wireless label printer. Test results may be transferred to the PC using the HearSIM software and printed to a full size printer.
Rapid Pass/Refer Testing
With a single start selection, you may run an ABR test or OAE test. The Novus will evaluate probe stability and automatically begin the testing routine. Powerful response detection algorithms for OAE and ABR ensure the Novus will quickly assign a pass or refer result.
• W x D x H: 3.3 in x 6.2 in x 0.8 in (15.8 cm x 8.3 cm x 1.9 cm)
• Display: 272 x 480 px / color
• Weight: 0.6 lb (265 g)
• User Interface: Resistive touch screen
• User Feedback: Integrated speaker
• Language Settings: English, default (15 options)
• Memory: 1 GB
• Data Interfaces: USB, Bluetooth®
• Start Up Time: <5 sec
• Battery: Li-ion battery 44794; Capacity: 3.7V/3850 mAh
• Warm Up Time: No warm-up time necessary after boot
• Test Signals: CE-Chirp®
• Stimulus Rate: 88/sec left ear, 92.5/sec right ear
• Stimulus Level: 35 dB nHL (default protocol)
• Data Collection: 22 kHz sample rate, 24 bit
• EEG Filter: 0.5 Hz – 5.0 kHz
• Gain: 72 dB
• CMRR: >100 dB at 100 Hz
DPOAE
• Stimulus Frequencies: 2000, 3000, 4000, 5000 Hz
• Stimulus Frequency Range: 1500 - 6000 Hz
• Nominal Frequency, F2/F1 Ratio: F2, 1.22
• Level L1/L2: 65/55 dB SPL
TEOAE
• Stimulus Type: Non-Linear Click (according to IEC 60645-3)
• Stimulus Frequency Range: 1000 – 4000 Hz
• Stimulus Level: 83 dB peSPL, peak to peak calibrated, AGC controlled
ELECTRICAL ISOLATION
• DC Power In: 5V/1.6A
• Power Supply: AC 100 – 240 V, ~ 50/60 Hz, 400mA
• Radioear IP30 Insert Earphones
• Probe for OAE and AABR testing
• Type: Thermal
• Connection: Bluetooth®
• Battery: Lithium Ion, DC 7.4V, 1500 mAh
• Charger: AC 100 - 250V, ~ 50/60 Hz, 1.0 A
• Weight: 0.8 lb (360 g)
• Paper: Thermal paper or labels (0.79 lb, 358 g)
• Operating Temperature: +59° F (15° C) to +95° F (35° C)
• Transport and Storage Temperature: -4° F (-20° C) to +122° F (50° C)
• Maximum Humidity: 90% (operation, non-condensing)
• Maximum Humidity: 95% (storage, non-condensing)
Manufactured, designed, developed, and marketed under ISO 13485 certified quality systems.
STANDARDS
• IEC 60601-1, Class II, Type BF
• IEC 60601-1-2
• IEC 60601-2-40
• ISO 389-2
• ISO 389-6
• IEC 60645-3
• IEC 60645-6, Type 2
• IEC 60645-7, Type 2
Portable Design
Its compact design allows the Novus to be easily transported to the infant’s bedside for convenient testing. The Novus is the perfect solution for a busy hospital that needs a newborn hearing screener that is reliable, portable, and fast.
Dependable Testing
High-volume hospitals rely on the Novus, which is designed to withstand the constant, intense nature of hospital screenings. The device is designed to provide consistently accurate results, so you can screen for infant hearing loss day in and day out.
Easy to Use
A newborn hearing screening device that is too complicated can be inefficient and slow down training and workflow. The Novus has a straightforward and logical interface that hospital screeners can learn to use quickly and with confidence.
Test Both Ears Simultaneously
The Novus offers two methods for simultaneous ABR tests by using IP30 insert phones with ear tips or ear cups. Testing both ears at the same time offers significant time saving benefits and less disruption to newborns and infants.
Key Newborn Hearing Screener Features
1. Combined ABR/OAE Testing
The Novus can combine ABR and OAE capabilities into one device. Reduce training time and screen infants in well-baby and NICU nurseries with one device.
2. CE-Chirp Stimuli for ABR
CE-Chirp ABR responses are twice as large as traditional click stimulus. Larger responses result in faster test times.
3. Quick Test Option
Perform a hearing test without entering demographic information. Ideal when training new staff or when you need to test a newborn quickly.
4. Automated Pass/Refer
Save time with automatic results as soon as pass/refer criteria are met. The Novus is optimized to provide accurate results from the infant ear.
5. Touch Screen Display
Screening staff feels an instant comfort with the intuitive touch screen display and can navigate seamlessly through the testing screens.
6. Wireless Charging
A wireless charging dock comes standard with the Novus. Screening tests can be completed any time when the battery is low and is charging in the wireless dock. A fully charged Novus can last for approximately 50 ABR screens or 150 OAE screens.
Featured Videos
PRODUCT TUTORIAL
Basic Device Operation
PRODUCT TUTORIAL
Successful Screening Tips
SOFTWARE TUTORIAL
How to Set Up Options
New Tutorial Video
Follow the link to access the new Novus tutorial, along with other training materials. Topics covered include:
- Basic Device Operation
- AABR and OAE Testing
- Successful Screening Tips
- HearSIM Data Management
Resilient Battery Life
A full schedule of testing is no problem for the Novus. The Novus can perform approximately 50 ABR or 150 OAE screens on a single charge. When the battery is low, testing may continue while the Novus is stationed in the cradle.
HearSIM
HearSIM™ software is a dynamic tool that has everything you need to manage your newborn hearing screening program. Store, view, and print test results. Export patient and testing information. Customize the Novus settings.
